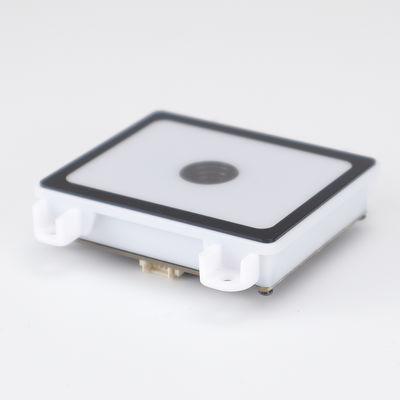

Name: YJ-ES908 OEM Embedded Barcode QR Code Scanner TTL/USB Interface for Cash Register Payment & Stock Management
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES908
Price: 8.00 USD
Availability: InStock

YJ-ES908 OEM Embedded Barcode QR Code Scanner TTL/USB Interface for Cash Register Payment & Stock Management

The Features of embedded barcode scanner

It comes with fixed hole for easy integration into other devices.

>lt has a global wide Angle design of 300,000, and the reading Angle is larger.

> lts excellent reading performance, window fill light uniform, whether the screen andpaper bar code can be easily read.
> Its big buzzer sounds louder, with green code scanning light, more clear tips.

> lt supports multi-interface USB (USB-KBW, HID-POS, USB-COM) and TTL signals bydefault, and can customize the RS232

interface for different application scenarios.

>It supports OCR character recognition such as the Chinese identity card.
>lt supports online upgrade, custom development and secondary development.

Application scenario of embedded bar code scanner

Transportation Field: In self-service terminal devices such as self-service ticket vending machines in subway stations and

self-service recharge machines at bus stops, the embedded barcode scanner can recognize the ride payment codes

presented by passengers, enabling convenient ride payment. It can also accurately identify and verify QR codes generated

for online ticket purchases, ensuring passengers travel smoothly.

Medical Industry: In the field of medical self-service terminals (e.g., self-service registration machines, self-service payment

machines, and self-service medicine dispensers), the scanner can read barcode information on patients' medical insurance

cards, registration cards, and electronic prescriptions, realizing the automation and intelligence of medical services.

Government Services Sector: It supports national secret-level encryption modules, which can meet the security verification

needs for sensitive information such as ID cards and health codes. It is particularly suitable for scenarios like airport security

checks and confidential units.

Technical Specifications of Fixed Barcode Scanners

ollection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QR Code, PDF417, DataMatrix (ECC200), etc In line with the international and domestic general one-dimensional code standards: EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast	Minimum 25% of the reflection difference
LED
Fill-in light	White
Physical parameters
size (Long, width and height)	61mm ×51mm ×16.4mm
Weight	Less than 30g

YJ-ES908 OEM Embedded Barcode QR Code Scanner TTL/USB Interface for Cash Register Payment & Stock Management 0

YJ-ES908 OEM Embedded Barcode QR Code Scanner TTL/USB Interface for Cash Register Payment & Stock Management 1

YJ-ES908 OEM Embedded Barcode QR Code Scanner TTL/USB Interface for Cash Register Payment & Stock Management 2

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES908

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Embedded Bar Code Scanner	Communication Mode:	USB/TTL/RS232
Size:	61mm ×51mm ×16.4mm	Scan Pattern:	Command Mode / Induction Mode / Trigger Mode
Compatible Devices:	PC Tablet Pos	Operation System:	Android/WIN XP/7/8/10 Mac OS IOS Linux
Symbologies:	1D/2D/PDF417/QR/Data Matrix Print Contrast Signal	Place Of Origin:	Guangdong, China
Highlight:	embedded barcode scanner with TTL interface , USB barcode scanner for cash registers , QR code scanner for stock management
