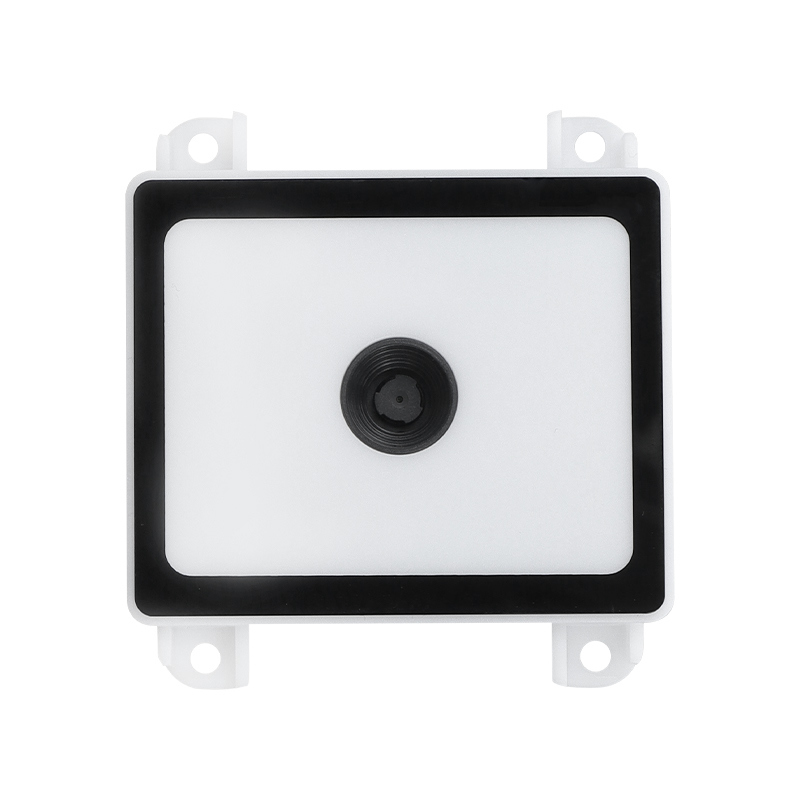

High-Speed Embedded Barcode Reader for Blurry & Damaged Codes

Advantages of fixed barcode scanners

1.Decoding Technology: Adopts independently developed core decoding technology for fast reading of barcodes of different qualities.

2.Technical Support: Provides comprehensive secondary development support and an SDK package, compatible with multiple systems.

3.Versatile Interface Options: Equipped with USB, TTL, and RS232 interfaces, whose protocols satisfy diverse interface requirements.

4.Design Highlights: Features a standard window design with high integration, facilitating easy embedding into various terminal

devices; equipped with large-area uniform fill light.

5.Decoding & Scanning Capabilities: Supports 1D/2D barcode recognition on paper and screen substrates.

6.Recognition Resolution: 300,000 pixels.

7.Recognition Precision: 5mil.

8.Recognition Speed: 1/60 second.

Features of Embedded Barcode Reader

1.Seamless Integration

Designed for easy embedding into your devices, our scanners fit perfectly into kiosks, ATMs, vending machines, medical

equipment, and more.

2.High-Speed & Accurate Decoding

Advanced imaging technology reads barcodes instantly — even damaged, blurred, or low-contrast ones — ensuring

smooth user experiences.

3.Compact & Durable Design

Robust yet space-saving, built to withstand continuous operation in harsh environments.

4.Wide Compatibility

Works with multiple symbologies (QR codes, UPC, Code 128, etc.) and integrates with various operating systems and

hardware platforms.

5.Smart & Versatile

Equipped with intelligent features like auto-sensing, motion tolerance, and adjustable scanning modes for maximum flexibility.

6.Cost-Effective Solution

Reduces development time and total cost of ownership while boosting your product’s value and competitiveness.

Parameter

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Print contrast	Minimum 25% of the reflection difference
size (Long, width and height)	61mm ×51mm ×16.4mm
Weight	Less than 30g
Joggle
Joggle	4 PIN cable socket: USB KBW 4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern	Command mode / induction mode / trigger mode
Read success tips	The LED and the buzzer
Data line (optional)	4PIN straight line
Enviromental parameter
Working temperature	-20℃ ~ 60℃
Storage temperature	-20℃ ~ 70℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux

High-Speed Embedded Barcode Reader for Blurry & Damaged Codes 0

High-Speed Embedded Barcode Reader for Blurry & Damaged Codes 1

High-Speed Embedded Barcode Reader for Blurry & Damaged Codes 2

High-Speed Embedded Barcode Reader for Blurry & Damaged Codes 3

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express

agents you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock

resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES908

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Embedded Barcode Scanner	Interface:	USB/TTL/RS232
Size:	61mm ×51mm ×16.4mm	Decoding Capability:	1D 2D Paper Screen Bar Code
Application:	Store Supermarket Industrial Logistics Warehouse Inventory	Scanning Mode:	Command Mode / Induction Mode / Trigger Mode
Compatible Devices:	PC Tablet Pos	Operation System:	Android/WIN XP/7/8/10 Mac OS IOS Linux
Highlight:	high-speed embedded barcode scanner , blurry code barcode reader , damaged code scanner with warranty
