YJFIRST Handheld 2D QR Code Scanner Rugged CMOS USB Barcode Reader 300 Scans/Sec for Retail Stores
Key Features of USB Wired Barcode Scanners
· Adopts self-developed core decoding algorithm for fast and accurate reading of all barcode qualities
· 1.3MP high-resolution sensor (1280×1024) with ultra-wide viewing angle for superior capture
· Physical sensing design enables reliable scanning even in complete darkness
· Supports both paper 1D/2D barcodes and mobile screen payment codes
· Seamless assembly with touch control button and surround indicator lights
· Sleep breathing light for low-power status and better user experience
· Motion tolerance up to 2.5m/s for moving barcodes

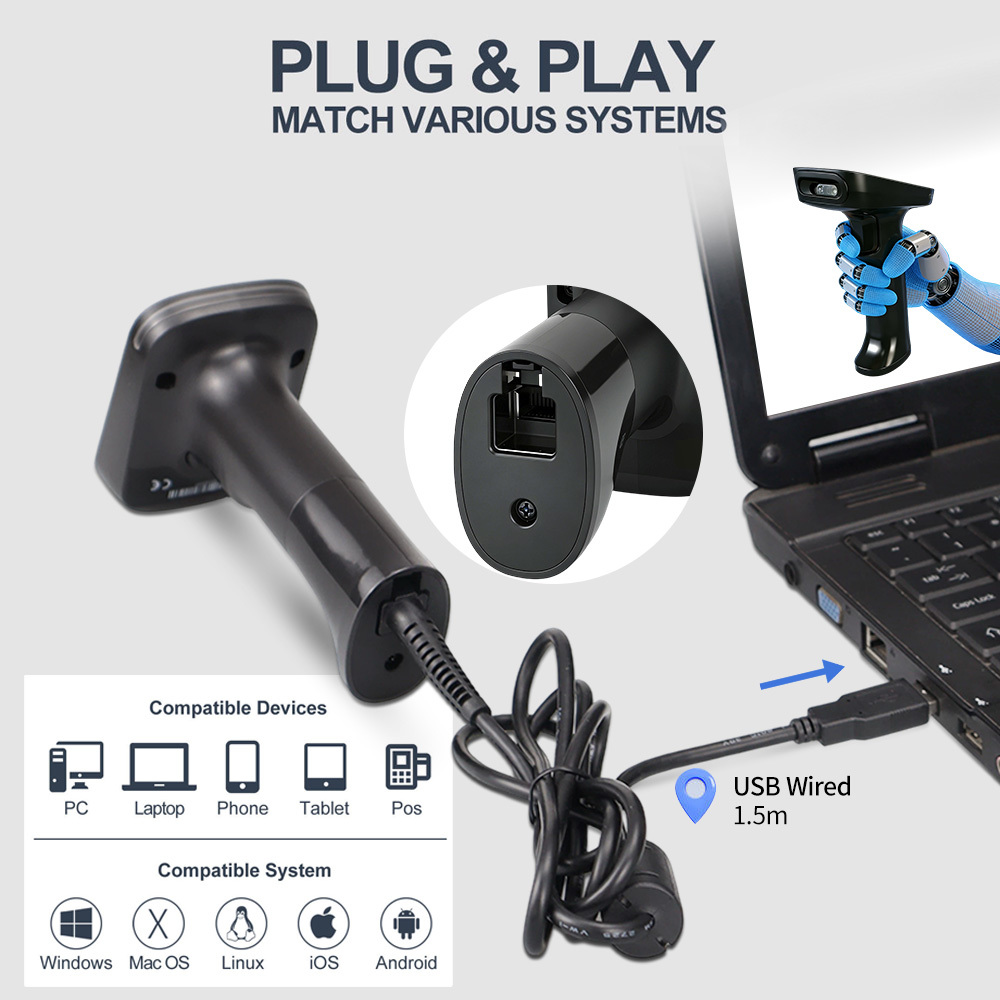

· True plug-and-play USB connection, widely compatible with multiple systems
Application Scenarios for USB Wired Barcode Scanners
· Retail: supermarkets, electronics stores, clothing shops, pharmacies, cosmetics stores
· Logistics & warehousing: inventory management, sorting, parcel tracking and warehousing
· Postal, telecommunications, banking and financial voucher verification
· Healthcare: hospital registration, pharmacy dispensing and medical system applications
· Customs, public security and government document identification
Technical Specifications for USB Wired Barcode Scanners
|
Item
|
Details
|
|
Image Sensor
|
CMOS 640(H) × 480(V) pixels
|
|
Minimum Print Contrast
|
≥20% reflective difference
|
|
Interface
|
USB, TTL (Optional)
|
|
Depth of Field
|
Code39(5mil): 4–16cm; Code39(13mil): 7–27cm; ENA13(13mil): 4–25cm; QR code(15mil): 5–25cm; Code128(5mil): 4–12cm
|
|
Dimensions
|
129 × 152 × 66 mm
|
|
Weight
|
150g
|
|
Voltage
|
5V
|
|
Current
|
Startup: 280mA; Standby: 180mA; Working: 340mA
|
|
Operating Temperature
|
-20°C ~ 60°C
|
|
Storage Temperature
|
-30°C ~ 70°C
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
