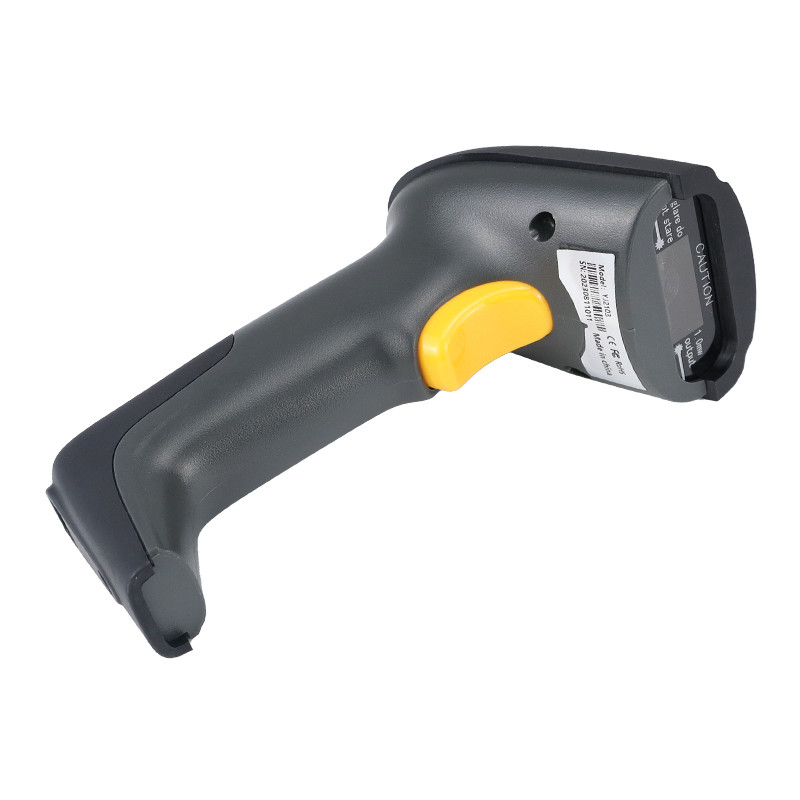

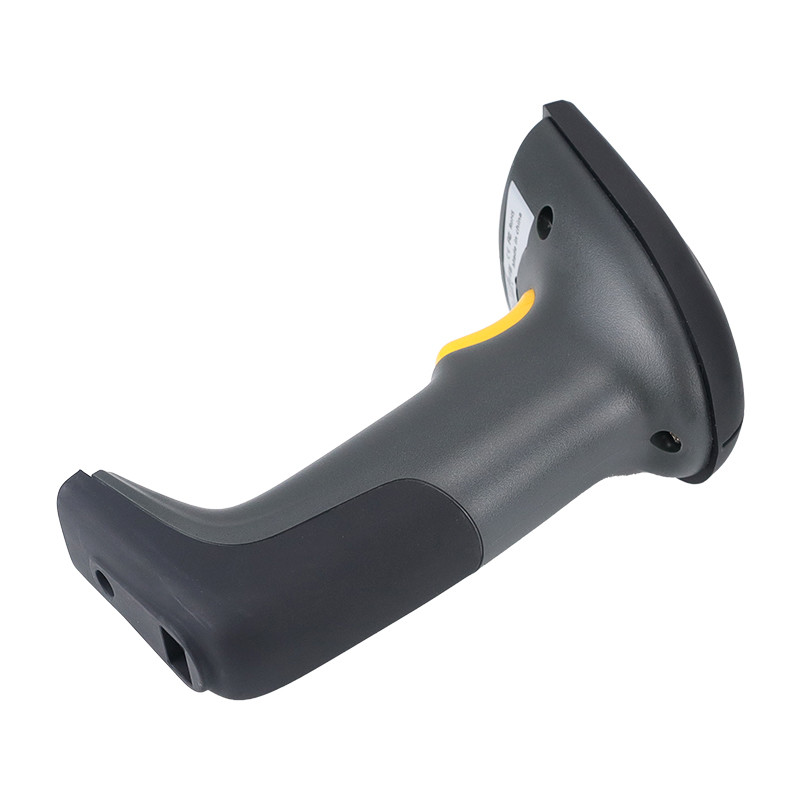

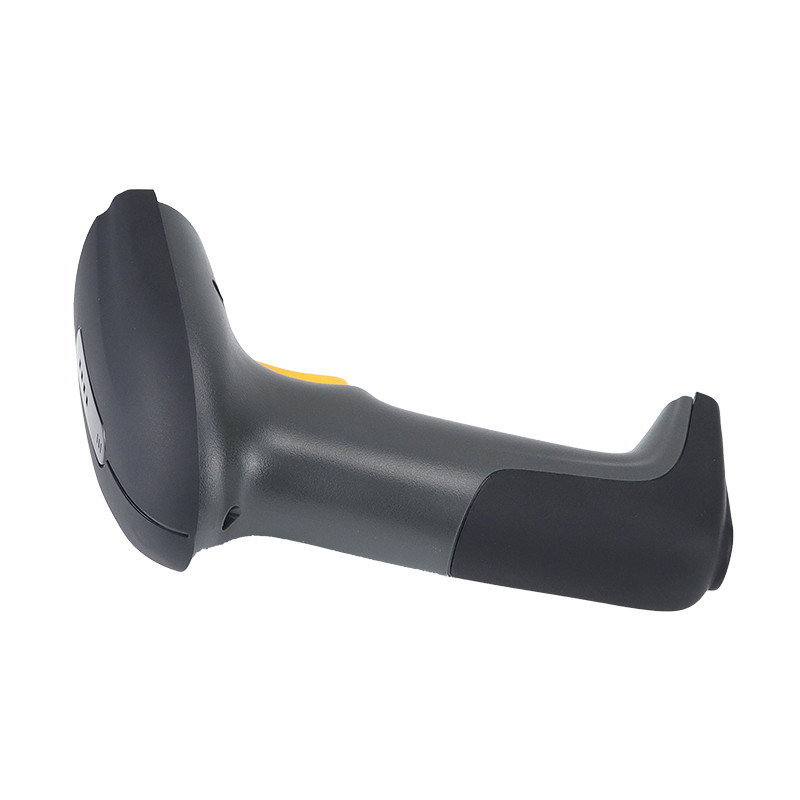

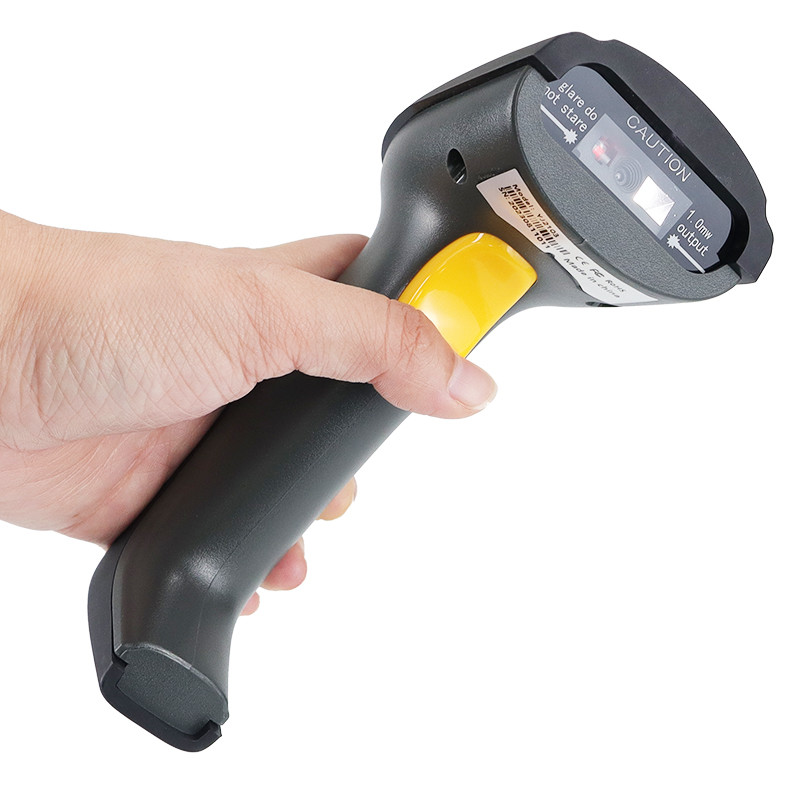

YJFIRST QR And PDF Barcode Reader 2d Handheld Wired CMOS Handheld Barcoe Scanner Visible Red Light Bar Code Reader
Common Applications:
Retail Point-of-Sale (POS): Scanning product barcodes for checkout and inventory.
Inventory & Warehouse Management: Tracking stock movement, receiving, picking, packing, shipping.
Asset Tracking: Managing IT equipment, tools, furniture.
Document Management: Indexing files, tracking workflows.
Library Systems: Checking books in/out, inventory.
Healthcare: Patient ID wristbands, medication administration, specimen tracking.
Manufacturing & Logistics: Work-in-process tracking, quality control, shipping/receiving.
Field Service: Equipment maintenance tracking, parts ordering.
Access Control/Event Management: Ticket scanning, attendee tracking.
7. Advantages:
Speed: Significantly faster than manual keyboard entry.
Accuracy: Drastically reduces data entry errors (typical error rate < 1 in 1 million scans).
Efficiency: Streamlines workflows across numerous industries.
Versatility: Wide range of models for different environments (retail, warehouse, industrial).
Data Integration: Seamlessly feeds data directly into business systems.
Ease of Use: Minimal training required.
|
Model:
|
YJ-2103 wired two-dimensional bar code scanner
|
|
Scan element type:
|
CMOS
|
|
Pixel:
|
640*480
|
|
Illuminant:
|
White light LED lighting, red light LED aiming
|
|
Scan pattern:
|
Key trigger, induction scan, automatic scan, continuous scan
|
|
Minimum resolution:
|
0.127mm(5mil) @Code 39, PCS=90%
|
|
Service environment:
|
0°C-50°C
|
|
Storage temperature:
|
-20℃~+70℃
|
|
Storage humidity:
|
5% -95% without condensation
|
|
Ambient illumination:
|
0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight)
|
|
Input voltage:
|
5VDC±10%
|
|
Working current:
|
150mA
|
|
Depth of field:
|
EAN-13 45mm-269mm (13mil 13 bytes)
Code39 35mm-119mm (5mil 7 bytes)
QR Code 19mm-185mm (15mil 30 bytes)
Data Marix 45mm-116mm (10mil30 bytes)
PDF 417 40mm-105mm (6.67mil 30 bytes)
|
|
Field of view Angle:
|
36° (H) x 27° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (optional)
|
|
Visual dimensions:
|
160mm * 60mm * 82mm (length * width * height)
|
|
Box size:
|
180mm * 110mm * 80mm (length * width * height)
|
|
Product weight:
|
Approximately 233g (not including packaging and accessories)
|
|
rough weight:
|
About 162.5g (including packing wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP52
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar
2D: QR Code, Data Matrix ,PDF417
|
|
scanning speed:
|
280 Times / second
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
