Industrial Handheld Barcode Scanner with High-Resolution Scanning Capability for High-Performance Scanning

Industrial Handheld Barcode Scanner with High-Resolution Scanning Capability for High-Performance Scanning

Product Advantages

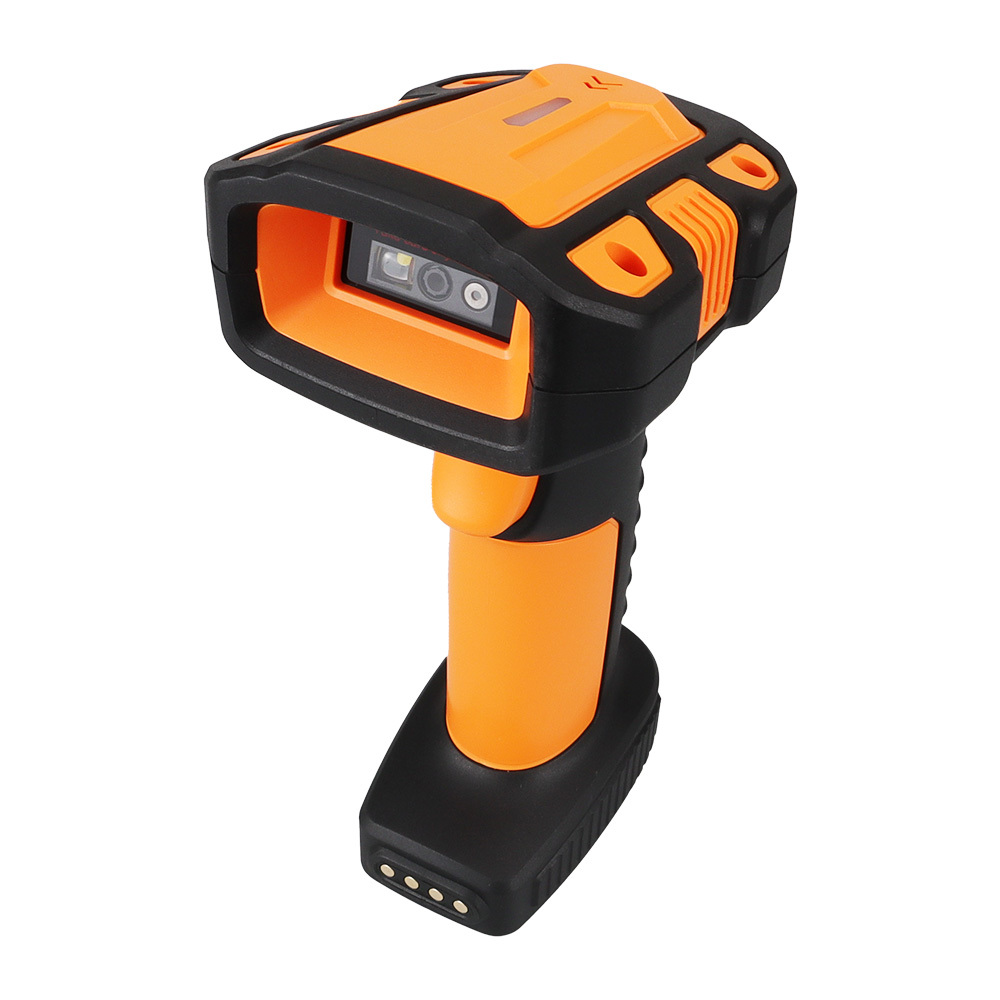

【High-Resolution Industrial Scan Engine】 The Alacrity barcode scanner incorporates a cutting-edge scan module equipped with a
high-resolution 1-megapixel optical lens. This advanced technology enables swift and accurate reading of various types of
printed barcodes on labels or displayed on mobile phones and computer screens. It excels even when faced with challenges such
as labels on shrinkwrap, partial damage, dirt, or poor print quality.
* 【Exceptional Signal Range】 The Alacrity 433MHz RF wireless barcode scanner stands out with its long-distance transmission
capabilities. In an unobstructed environment, it can transmit signals up to an impressive 1968 feet (600 meters), and even in
environments with obstacles, it reaches a substantial 656 feet (200 meters). This extended range makes it a perfect fit for
large warehouses where signal coverage is crucial.

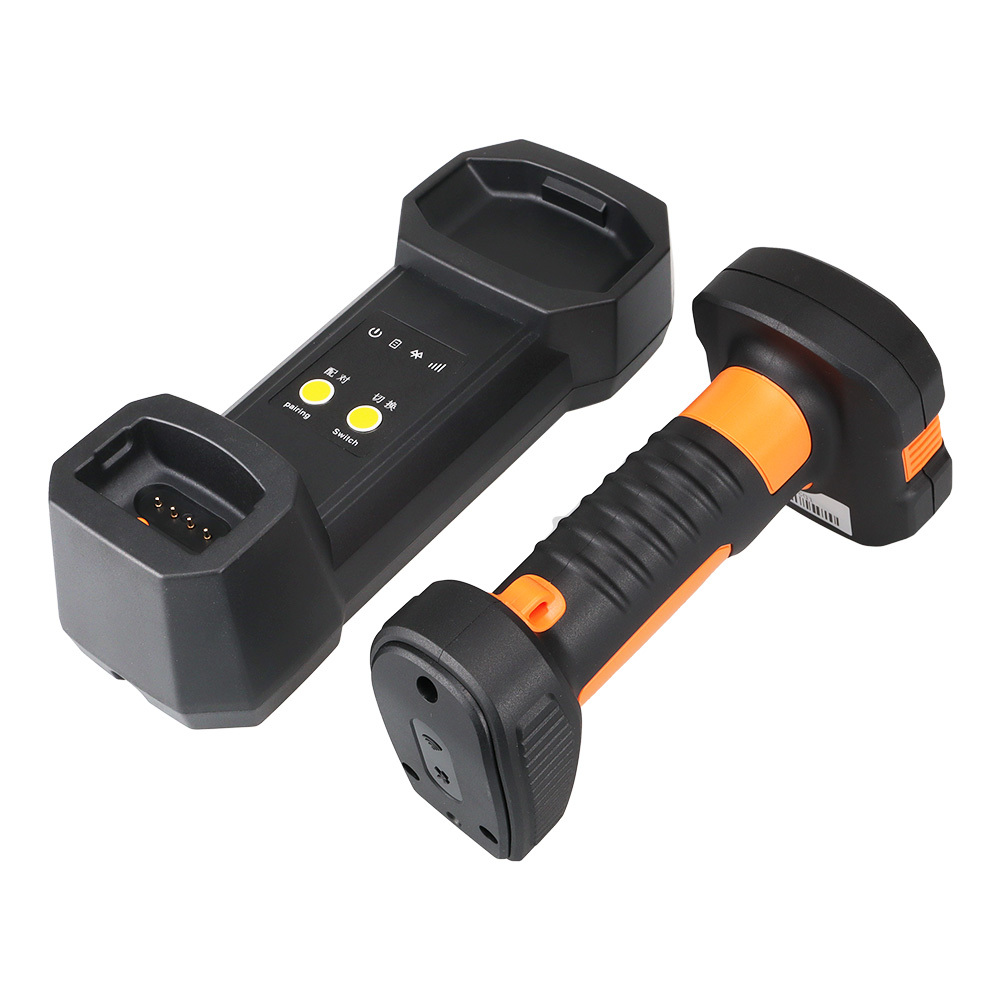

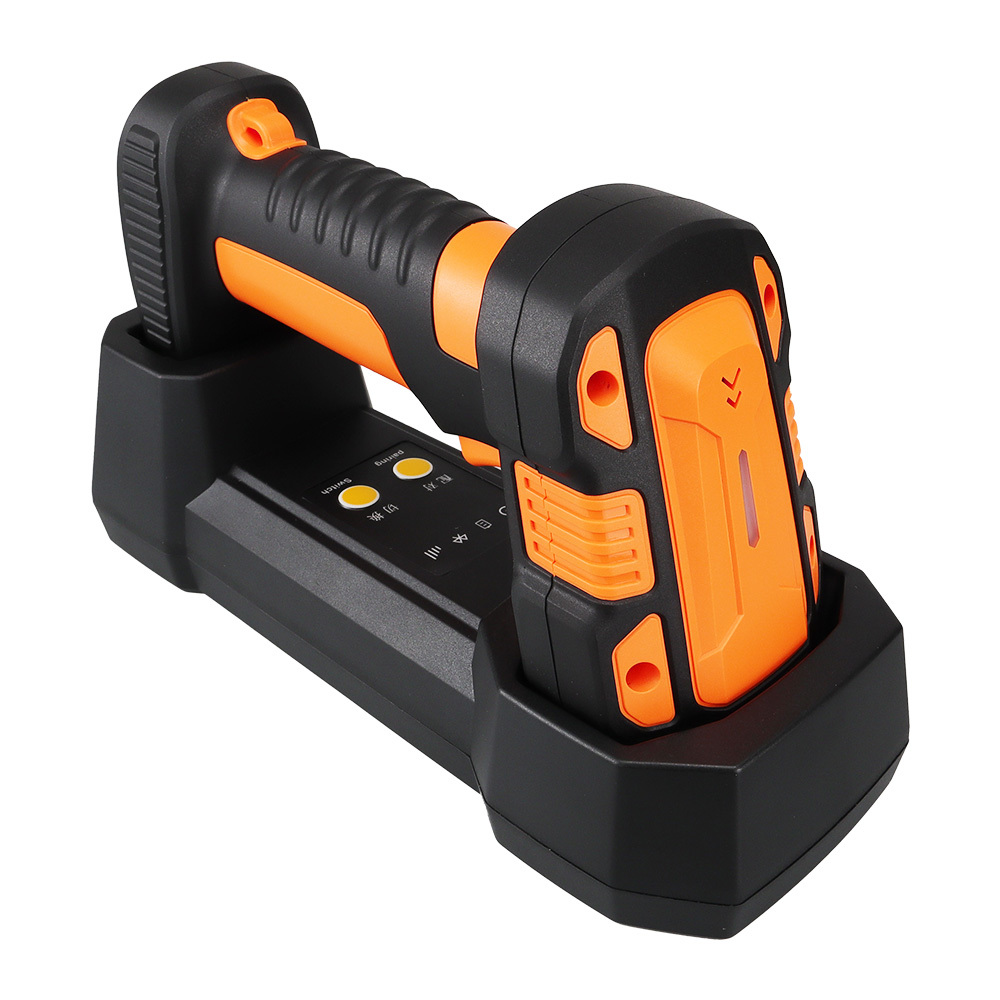

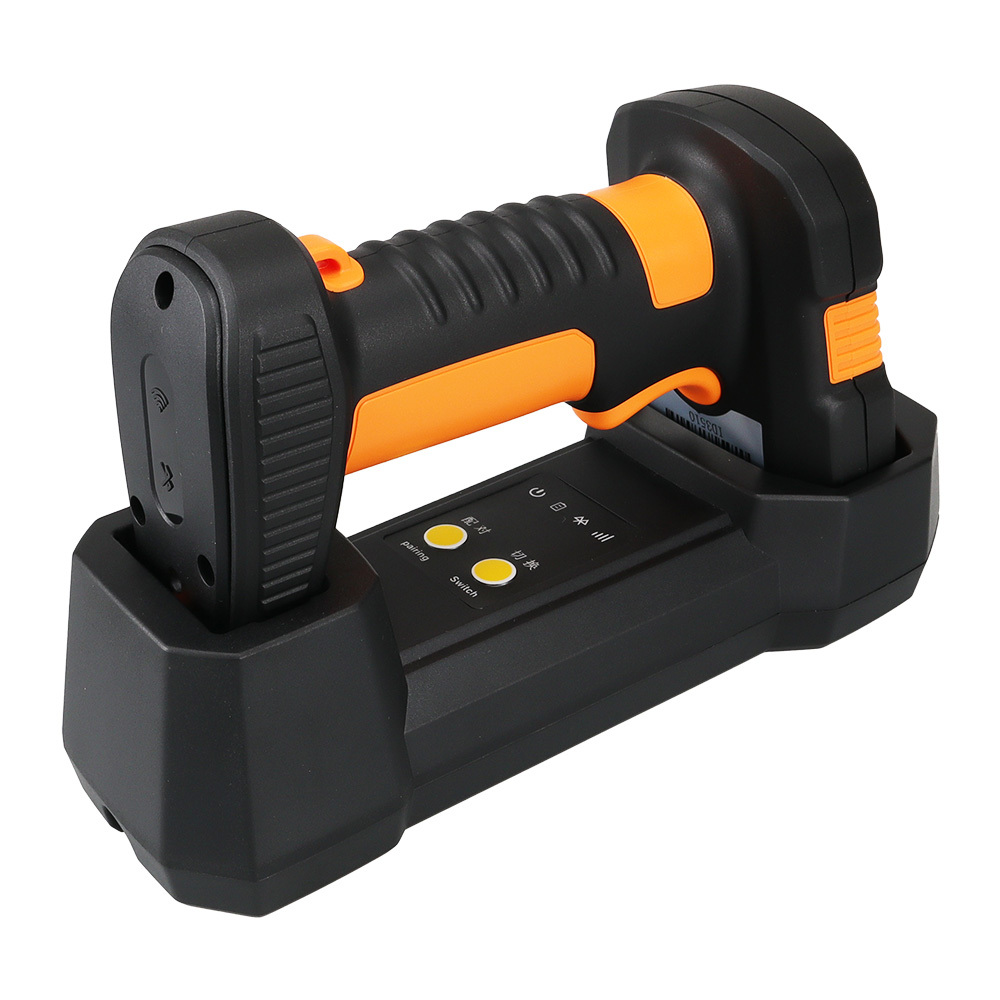

* 【Wireless Charging for Ultimate Convenience】 Experience the freedom of wireless charging by effortlessly placing the scanner on
the stand. No software installation or app is needed, ensuring compatibility with Windows, Mac OS, iOS, Android, and a variety
of common software like QuickBooks, Word, Excel. This versatile scanner finds applications in supermarkets, cosmetic stores,
retail, postal services, logistics, banking, and medical institutions. It's a reliable solution for diverse industries.
* 【Industrial-Grade Superior Durability】 The Alacrity industrial barcode reader boasts exceptional durability with a robust ABS
material that provides excellent shockproof capabilities, making it capable of withstanding drops from heights of 8 ft./2.4 m
onto concrete floors. Its integrated housing ensures dustproof functionality, protecting the scanner from heavy dust and
allowing it to perform reliably in challenging working conditions.
* 【Versatile Customized Configuration Options】 Handsfree Intelligent sensor mode/ Trigger scan mode. Vibration/buzzer settings.
Data Storage/Instand Upload Mode. Multiple keyboard languages. Adding / hiding prefix / suffix including date and time, etc.

Item	Parameter
Model:	YJ-ID3510
Scanner Type:	CMOS (Global Exposure)
Pixel:	1 million pixels (1280×800)
Light Source:	Red Laser
Scanning Mode:	Key-triggered, continuous scanning, auto-sensing scanning
Reading Accuracy:	3.3mil
Reading Contrast:	≥10%
Reading Angle:	Tilt ±60°, Rotate ±360°, Deviation ±60°
Operating Environment:	-20℃~65℃
Storage Temperature:	-40℃~+70℃
Storage Humidity:	5% - 95% non-condensing
Ambient Lighting:	White LED
Operating Voltage:	3.2~3.6V
Operating Current:	280mA@3.3V (scanning state, average current)
Standby Current:	40mA@3.3V (standby state, USB off)
	45mA@3.3V (standby state, USB on)
Typical Reading Depth of Field:	3.3milCODE39:10~20cm 5milCODE39:7~32cm 13milEAN13:5~72cm 15milQR:3~40cm 10milDataMatrix:8~28cm 6.7milPDF417:9.5~27cm
Field of View Angle:	Horizontal 39°, Vertical 26°
Interface Support:	USB, USB-COM, RS-232 (optional)
Indication Methods:	LED, Buzzer
Dimensions:	192mm x 75mm x 98mm (Length x Width x Height)
Box Dimensions:	222mm x 130mm x 81mm (Length x Width x Height)
Product Weight:	Approximately 350g (excluding packaging and accessories)
Gross Weight:	Approximately 450g (including packaging, cables, and accessories)
Cable Standard:	Straight: 1.8m
Color:	Black, Yellow, Red, Blue
Material:	ABS+PC
Sealing Level:	IP54
Drop Height:	1.5m
Code Types:	1D: Code128,Code39,Code39fullascii,TriopticCode39, Code32, Code93, UPC-A, UPC-E, UPC-E1, UPC- E+, UPC-A+, EAN8/JAN8, EAN13/JAN13, Bookland EAN/ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codebar, Code11, MSI, ISBT, GS1-128,GS1Databar14,GS1DatabarLimited,GS1 Databar Expanded, Postal codes worldwide 2D: QR, Datamatrix, PDF417, MicroQR, MicroPDF417, Hanxin, GridMatrix, Aztec, Maxicode, GS1 QR, GS1 Datamatrix, GS1 Composite (CC-A/CC-B/CC-C)

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience

in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD

barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning

platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,

supermarket, retail, medical, postal communication, office automation, manufacturing and other fields.

We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality

products at competitive prices.

Exhibition

Applications

Transportation

FAQ

Q:Can you send sample?

A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.



Q:Can we have our logo or company name to be printed on the product or package?

A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.



Q:What's the shipping way?

A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.



Q:What's the payment way?

A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.



Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.



Q:How is your quality control?

A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing).

CE, FCC & ROHS certificated.



Q:If I come across any problem during product using, where I can get the support?

A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion

by email or call in time.
