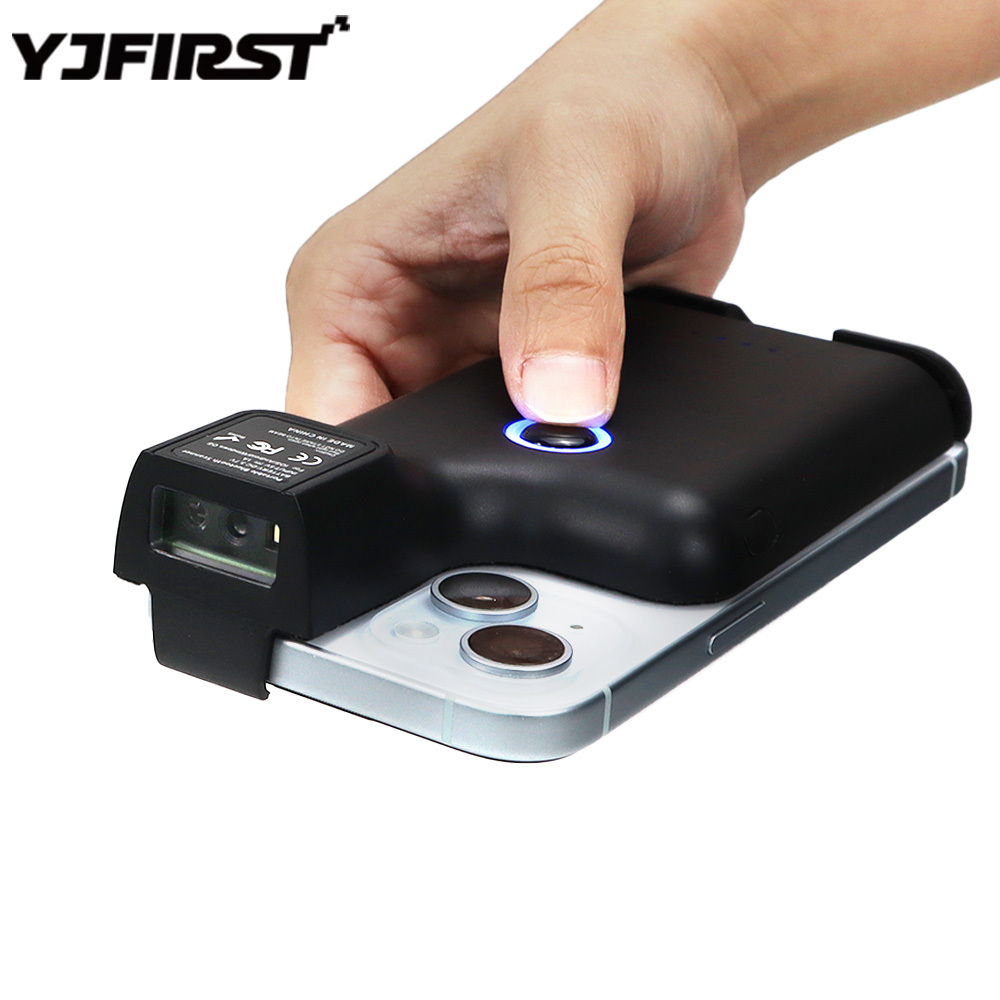

Omnidirectional USB-C Barcode Scanner Belt Clip/Backclip Wearable Scanner for Warehouse & Trolley Use
Features of the Belt-Mounted Clip-On Scanner
YJ-6606 is a high-performance phone clip-on barcode scanner equipped with a superior decoding core, enabling
efficient and accurate recognition of various 1D/2D barcodes. It supports dual-mode communication of 2.4G wireless
transmission and Bluetooth 4.0, ensuring stable long-distance data transfer. In warehouse mode, it can store up to 50,000
EAN13 product codes, significantly reducing inventory workload. Compatible with multiple phone models, the clip-on design
is convenient and easy to use, adapting to different operating habits for efficient and hassle-free barcode scanning.
Advantages of the Belt-Mounted Clip-On Scanner
1.Decoding Technology: Adopts independently developed core decoding algorithms to quickly read barcodes of various
qualities, featuring ultra-low power consumption and compatibility with multiple systems. Bluetooth transmission distance
reaches up to 30 meters indoors, ensuring stable and reliable long-distance data transfer.
2.Product Traits: Supports free switching between wired, wireless, and Bluetooth dual modes, adapting to multiple scenarios.
Built-in large-capacity secure memory can store over 50,000 barcodes during offline scanning. Exclusive intelligent power
management enables ultra-long standby time. It covers mainstream barcode types with a slim, fashionable design for easy
portability without restrictions.
3.Rich Protocols: Supports 2.4G wireless transmission and is compatible with multiple Bluetooth protocols (HID, SPP, BLE),
enabling flexible connection to various terminal devices with strong adaptability.
Application Scenarios for Waist-Mounted Clip-On Barcode Scanners
Widely applicable to supermarket/convenience store checkout, customer service desk barcode verification, warehousing
and logistics inventory management, manufacturing process tracing, O2O on-site redemption, and other scenarios, providing
strong support for mobile and efficient operations.
Technical Specifications for Waist-Mounted Clip-On Barcode Scanner
|
Model
|
YJ-6606
|
|
Illumination
|
625nm LED
|
|
Scan principle
|
Imaging CMOS
|
|
Trigger mode
|
Manual mode/sensing mode/continuous mode
|
|
Scan angle
|
Roll 360°, Pitch 65°, Skew 60°
|
|
Accuracy*
|
≥4.5mil
|
|
Interface
|
2.4G, Bluetooth, USB
|
|
Battery capacity
|
1100mAh
|
|
Battery charging time
|
4.5 hours
|
|
Continuous operating time
|
>10 hours (6 seconds/time)
|
|
|
Bluetooth: 30 meters in the open air without obstacles
|
|
Wireless: 100 meters in the open space without obstacles
|
|
Dimension
|
70mm(L)*30mm(W)*145mm(H)
|
|
Weight
|
100g
|
|
Voltage
|
DC 5V ± 5%
|
|
Operating current
|
220mA
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
