YJFIRST Ring Finger Scanner Mini Pocket Barcode Reader Wireless 2D Wearable Portable Barcode Scanner

Products Description

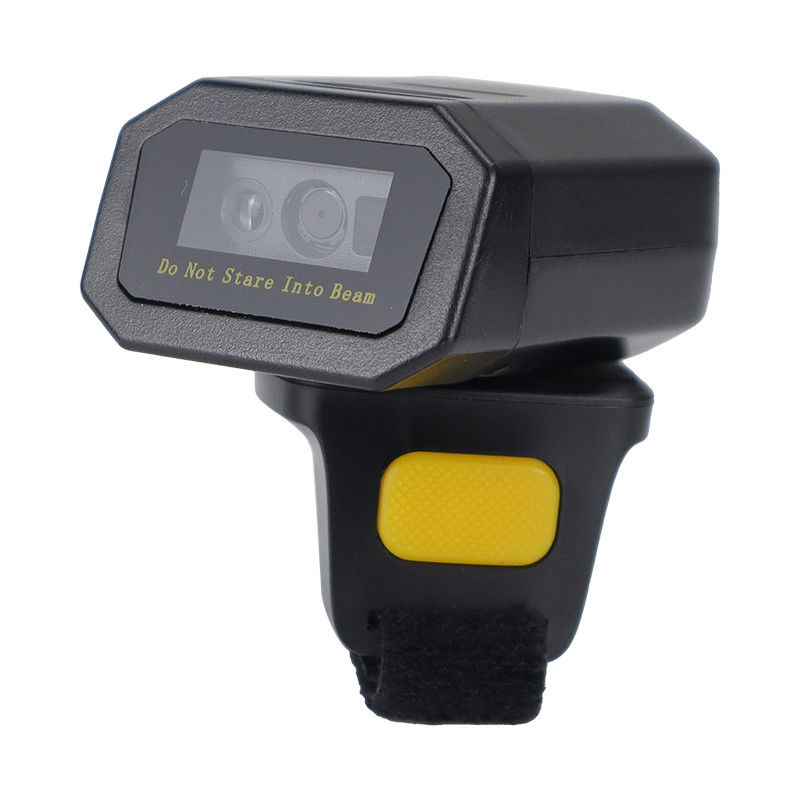

A ring scanner is a compact, wearable barcode scanning device designed to be worn on a finger, like a ring.
It's a specialized type of wearable barcode reader optimized for hands-free or one-handed operation in fast-paced environments.
It functions as a peripheral input device, typically connecting wirelessly to a host computer, mobile device, or warehouse

management system .

Scan the performance parameters
BT coverage	15m visual range, Bluetooth disconnected can automatically reconnect
Module	BT class 4. 1 dual-mode
Transmission mode	Support Chinese transmission, up to 2000 bytes of transmission
Communication mode	SPP, HID, BLE (with full SDK)
Scan module	One dimensional laser: Japan or Motorola SE955, one dimensional domestic CCD or 2D
Support bar code	1 D: Codabar,Code 11,Code 93,MSI,Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,ISBN,Industrial 25,Industrial 25 Standard 25,2/5 Matrix 2 D: PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, etc. (or according to the corresponding scan head parameters)
Resolution	4mil
Depth of field	6~30cm
Scanning speed	200 Tests / s
The way to lift	Buzzer, indicator light, vibration
Print contrast	30%
Lateral scan of the cylinder	diameter 35mm

Core Purpose & Functionality

Primary Function: To rapidly and accurately capture data from 1D barcodes (like UPC/EAN) and often 2D codes (like QR

codes, Data Matrix) omnidirectionally.

Key Benefit: Frees the user's hands for handling items, packages, or operating other equipment while scanning, significantly

improving efficiency and ergonomics.

Operation: Scanning is usually activated by pressing a trigger button located on the scanner itself (often with the thumb).

Some models offer "presentation mode" where scanning auto-initiates when a barcode is detected within its field of view.

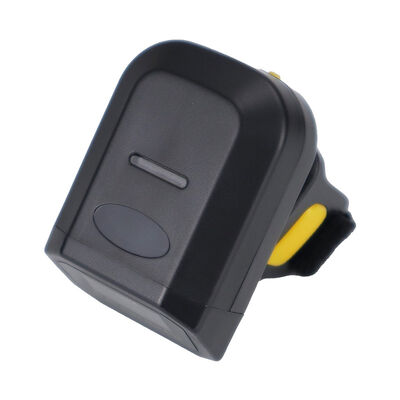

CMOS Wearable Barcode Scanner Portable Finger Barcode Scanner Mini 0

CMOS Wearable Barcode Scanner Portable Finger Barcode Scanner Mini 1

CMOS Wearable Barcode Scanner Portable Finger Barcode Scanner Mini 2

CMOS Wearable Barcode Scanner Portable Finger Barcode Scanner Mini 3

CMOS Wearable Barcode Scanner Portable Finger Barcode Scanner Mini 4

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.

Tag:

Place of Origin:	China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-6602

Minimum Order Quantity:	1pcs
Price:	1 - 100 pieces $37 100 -500 pieces $36.5 500 -1000 pieces $36
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	30000pcs/month

Product Name:	Wearable Barcode Scanner	Type:	Finger Barcode Scanner
Scan Element Type:	CMOS	Place Of Origin:	Guangdong, China
Warranty(year):	1-Year	After-sales Service:	Return And Replacement, Others, Repair
Highlight:	CMOS Wearable Barcode Scanner , Wearable Barcode Scanner Portable , Finger Barcode Scanner Mini
