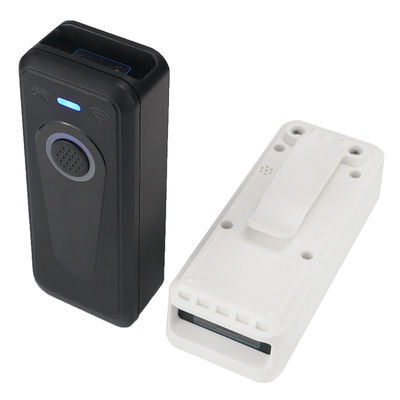

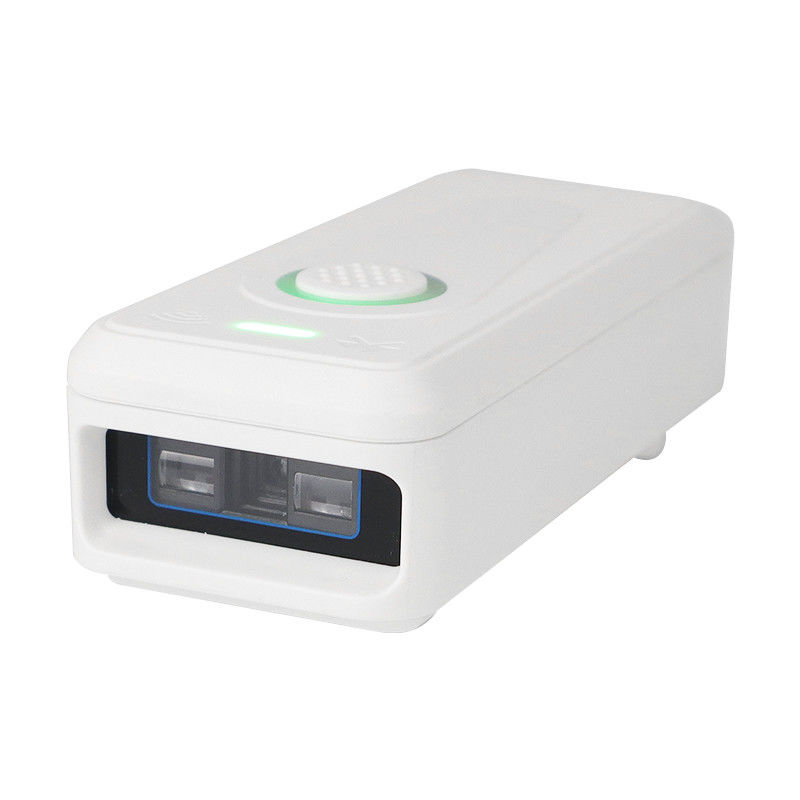

Bluetooth 2.4 G Wireless Barcode Scanner Multi Function Mini Barcode Scanner IP52

Name: Bluetooth 2.4 G Wireless Barcode Scanner Multi Function Mini Barcode Scanner IP52
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-7602(BT +2.4G Wireless 2D)
Price: 66 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-7602(BT +2.4G Wireless 2D)
MOQ:	1
Price:	$66
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Wireless Barcode Scanner

Optical Resolution:

5mil

Scan Speed:

400 Times/sec

Brand Name:

YJFIRST

Software Development Kit (sdk):

Yes

Single Gross Weight:

0.209 Kg

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Bluetooth 2.4 G Wireless Barcode Scanner

Multi Function Mini Barcode Scanner

Mini Barcode Scanner IP52

Product Description

Multi-Function Scanning 2.4g BT Wireless Barcode Scanner 2d Wireless Barcode Scanner Handheld Scanner

for Barcode Reader

Products Description

Scan element type:	CMOS (global light burst)
Pixel:	300000 Pixel
Illuminant:	617nm red light LED
Scan pattern:	Key trigger, induction trigger, automatic scanning, continuous scanning
2.4G Transmission distance (open space):	1,00,1,50 m
BT transmission distance (open space):	From 50 to 100 m
Scanning speed:	200 Tests / s
Full-readable bar code:	More than 100,000 times
Minimum resolution:	0.127mm(5mil) @Code 39, PCS=90%
Minimum contrast ratio:	≥ 30%
Service environment:	0°C-50°C
Storage temperature:	-20℃~+70℃
Storage humidity:	5% -95% without condensation
Battery capacity:	1800m A h
Input voltage:	5VDC±10%
Working current:	145mA-165mA
Depth of view Angle:	30° V x 48° H (vertical horizontal)
Field of view Angle:	48° (H) x 30° (V)
Visual dimensions:	71mm34.5mm42mm (length * width * height)
Box dimensions:	15513750mm
Product weight:	Approximately 146g (not including packaging and accessories)
Rough weight:	About 209g (including packing wire material and accessories)
Cable standard:	Direct line: 1.8m
Sealing grade:	IP52
Fall height:	1.5m

Handheld mini wireless 2.4G BT 2D barcode scanner Features:

1. Fast scanning speed, powerful reading performance and high accuracy. Support for multiple languages

2. Can scan the screen code, offline storage, two transmission modes, easy to carry

3.32-bit microprocessing, LED bright lighting, compatible with different end-user systems

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in

the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode

scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms,

and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket,

retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality products
at competitive prices.

Exhibition

Applications

Transportation

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
