埋め込みバーコード スキャナー
Created with Pixso. Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes

Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes

ブランド名: YJFIRST
モデル番号: YJ-ES908
Moq: 1pcs
価格: $17
配達時間: 3-7勤務日
支払条件: T/T、D/P、D/A、L/C、MoneyGram、Western Union
詳細情報
起源の場所:
中国広州
証明:
CE, ROHS, FCC, IEC, FDA
製品名:
バーコードスキャナ
通信モード:
USB/TTL/RS232
重さ:
30g未満
サイズ:
61mm×51mm×16.4mm
olectionメソッド:
画像タイプ、CMOSセンサー
保証(年):
1年
製品のステータス:
在庫
応用:
ストア スーパーマーケット 産業物流 倉庫 備蓄
パッケージの詳細:
ギフトボックス
供給の能力:
月20000個
製品説明

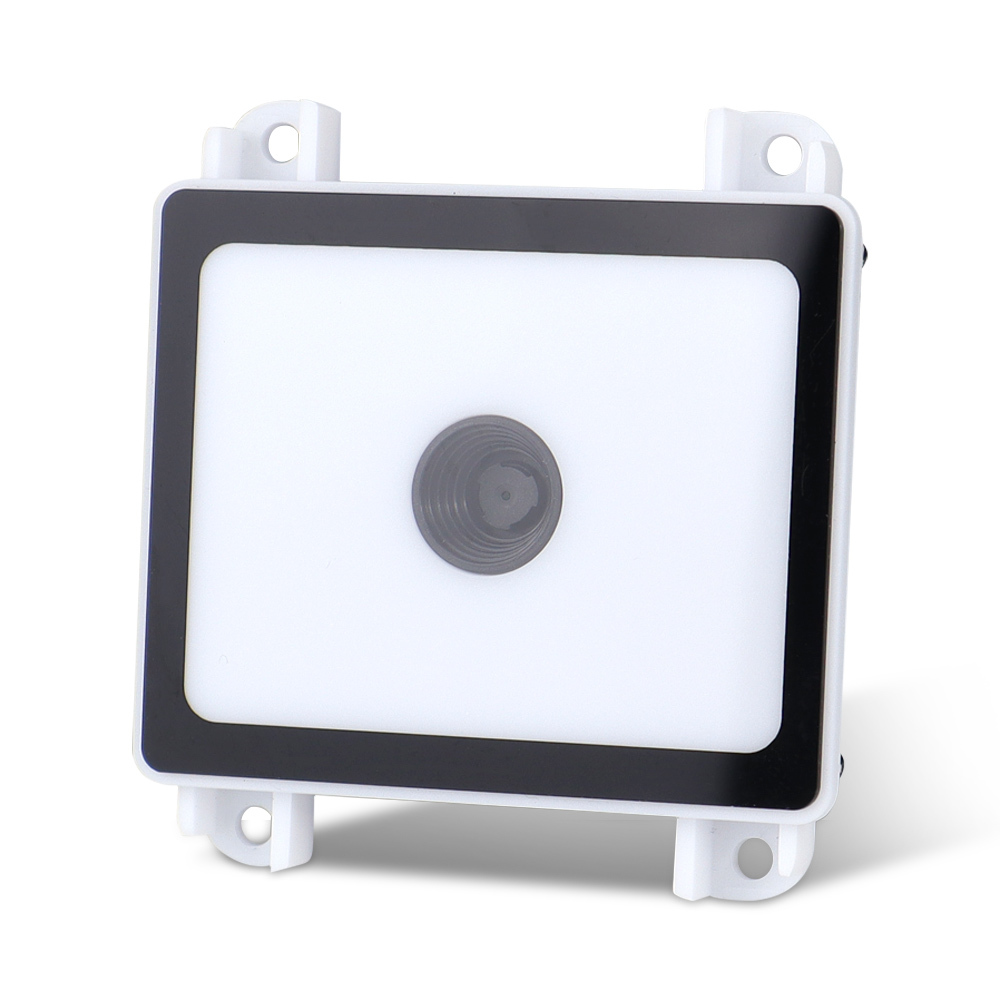

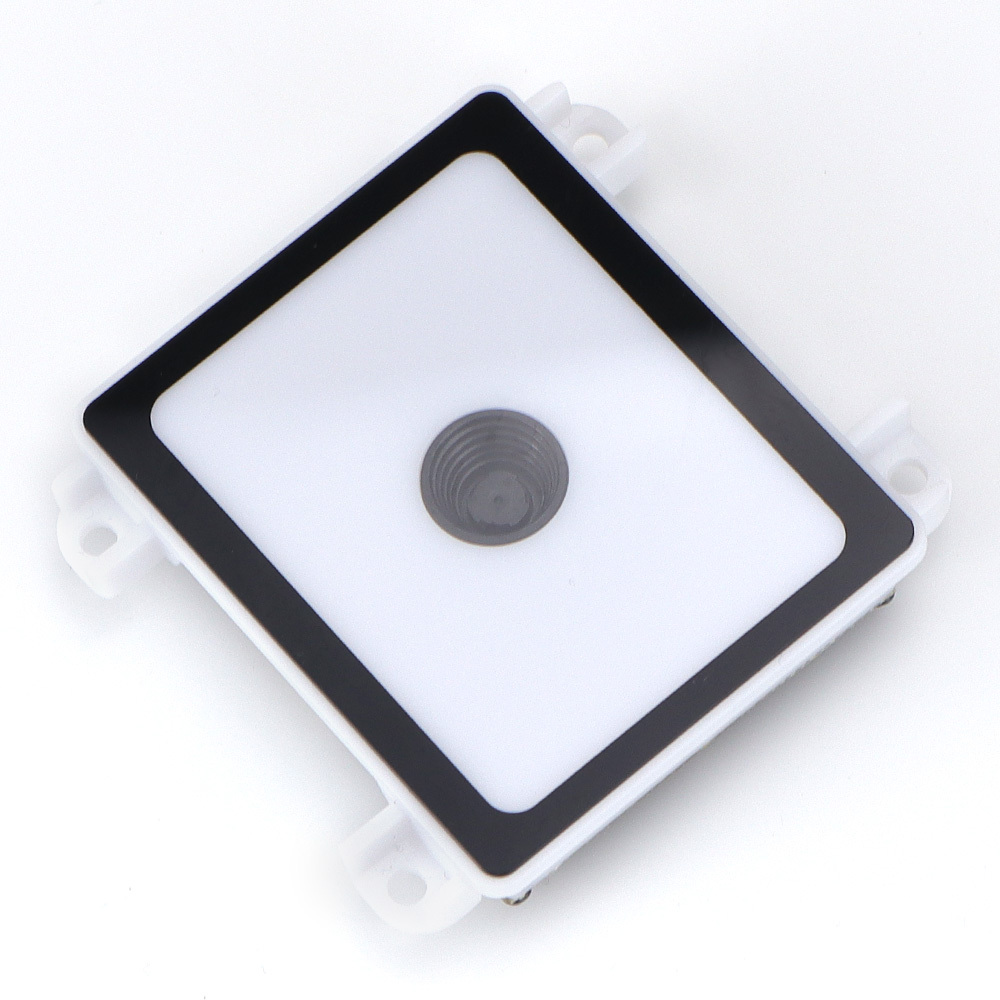

Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes

The Features of embedded barcode scanner

Industrial Decoding 2d barcode scanner
* Mini Size 2D barcode scanner
* Wide Voltage Design bar code scanner
* Support for Barcode on Paper&Screen

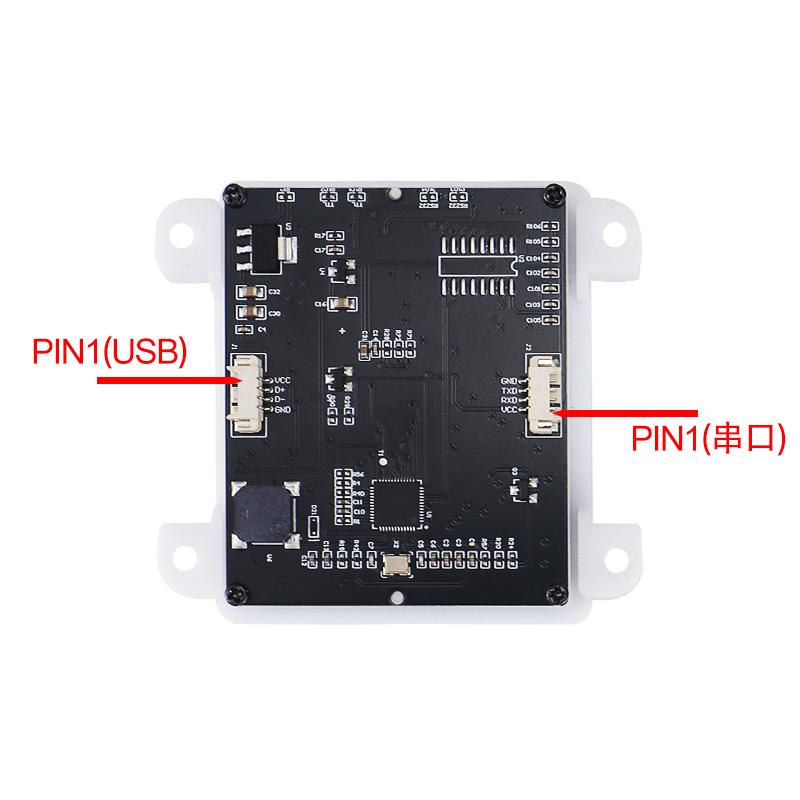

* Multiple interface: USB, TTL 232, RS232,
* Ultra-design with thickness of 21mm
* Support 1D & 2D qr code scanner



Advantages of embedded code scanner


1.Reduce your development complexity and costs. Get your smart, scan-enabled products to market faster with our

well-documented SDKs and developer support.


2.Eliminate scanning errors and bottlenecks. Ensure smooth operations in high-volume environments like retail checkouts

and logistics warehouses, boosting productivity and customer satisfaction.


3.Maximize uptime and ROI. Enjoy long-term reliability that reduces maintenance needs and total cost of ownership, perfect

for 24/7 industrial or outdoor use.


4.Create a frictionless and modern user interaction. Whether it's a self-checkout kiosk or an inventory app, a smooth scanning

experience delights end-users.


 Application scenario of embedded bar code scanner

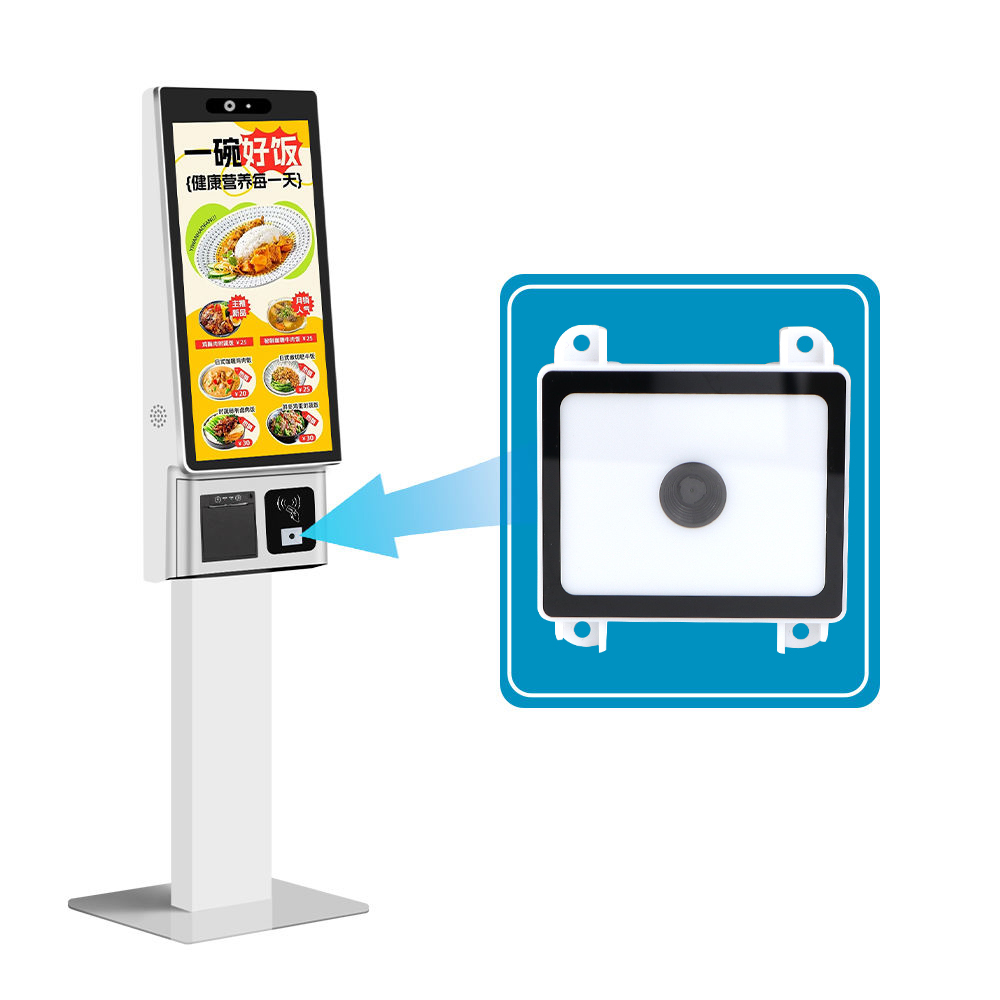

1.Redefine the Checkout Experience. Reduce Labor Costs.

2.Empower Your Workforce with Industrial-Grade Reliability.

3. Ensure Patient Safety with 100% Accuracy.

4.Track, Trace, and Optimize Your Production Line.


 Parameter
ollection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy
≥5mil
Read the way
Close to, close to the reading
Scan the Angle
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system
In line with the international and domestic general QR code standards:
QR Code, PDF417, DataMatrix (ECC200), etc
In line with the international and domestic general one-dimensional code standards:
EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5,
Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast
Minimum 25% of the reflection difference
LED
Fill-in light
White
Physical parameters
size
(Long, width and height)
61mm ×51mm ×16.4mm
Weight
Less than 30g

Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes 0

Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes 1

Industrial-Grade Embedded Barcode Scanner for 1D/2D/3D Codes 2

FAQ

Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more
details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?
A: Our formal warranty period is one year after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
